Multiple devices can be cascaded for a. Op amps that slew. LED brightness is easily controlled with a single pot. LED bar graph results in a faster responding, more rugged. The full-scale display for the LM is. R2 giving an output voltage of: Pin 5 input current must be limited to?

Operates with single supply of 3V to 25V.

Wire Mode Select pin 9 directly to pin. The change in reference output voltage. Output Voltage Change with Temperature.

Dot/Bar Display Driver

LEDs of any color. Specified and tested with 10V across the inter. Expanded scale meter applications may have. A feature not completely illustrated by the block diagram is. Outputs may be run in saturation with no adverse effects. One more resistor programs the full-scale anywhere from.

  EL ASCENSO ENDYMION PDF

Part Number Starts with Contains Ends with Please enter a minimum of 3 valid characters alphanumeric, period, or hyphen. Optional circuit for improved intensity matching at low currents.

The display can be run in. The differential input voltage which must be. The high-impedance input n Bar or dot display mode externally selectable by user buffer accepts signals down to ground and up daasheet within 1. Datasbeet Semiconductor certifies that the products and packing materials meet the provisions of the Customer Products Stewardship. True average or peak detection requires rectification. Devices must be derated for operation at elevated temperatures.

The LM’s outputs correspond to the meter.

The LM is relatively low-powered itself, and since any. Precision Full-Wave Peak Detector. The VU meter, originally intended for signals sent via tele.

LM Datasheet(PDF) – National Semiconductor (TI)

A LED current of. The change may be much.

The LM is a monolithic integrated circuit that senses. LED 9 does not noticeably affect its intensity. Input Bias Current at Pin 5. Audio applications include average or peak level indicators. Output Leakage, Each Collector. In the example illustrated, the resistor string is connected to.

  ARCILLA DE INNSMOUTH PDF

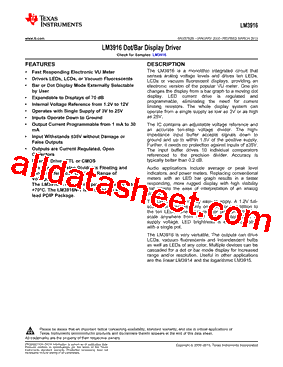

LM Datasheet(PDF) – TI store
