LED CUBE 8X8X8 PROJECT PDF

Mar 31 2020
admin

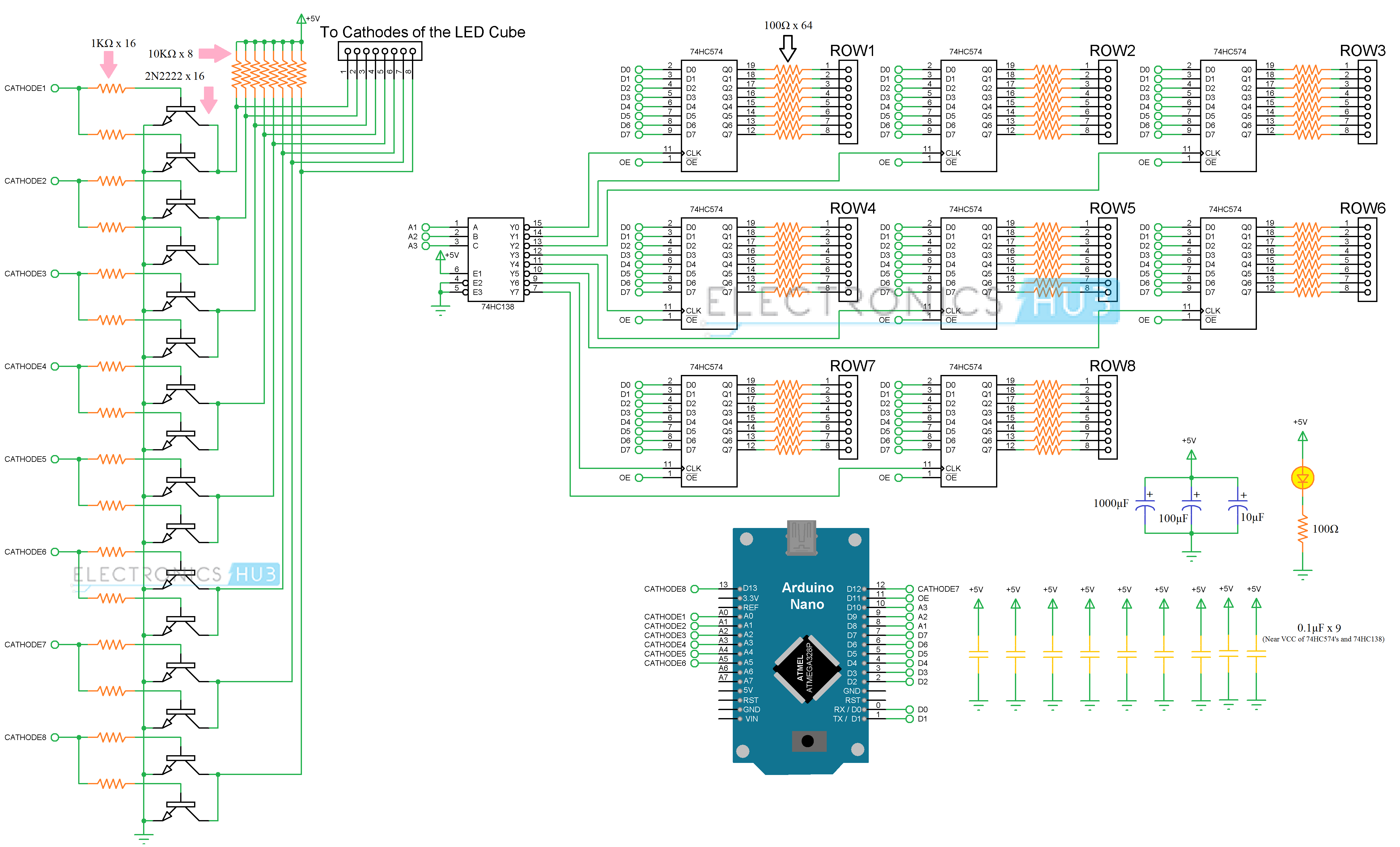

In this project, we will see how to build an 8x8x8 LED Cube. There are many projects based on the 8x8x8 LED Cube and some of them became. 8x8x8 LED Cube Driver If you take a look back at the schematic you will see it is basically split in half. The right hand side is for the individual LED driver and the. 8x8x8 LED cube powered by an arduino. GitHub is home to over 28 million developers working together to host and review code, manage projects, and build.

Author: Malaramar Samukinos
Country: Mexico
Language: English (Spanish)
Genre: Life
Published (Last): 24 March 2017
Pages: 336
PDF File Size: 6.22 Mb
ePub File Size: 20.94 Mb
ISBN: 192-6-96166-879-3
Downloads: 15257
Price: Free* [*Free Regsitration Required]
Uploader: Sharamar

Wire connections cubd anode legs of column 5, 6, 7, and 8 Figure Kindly help me out for this…. Stack up the donut board using PCB stands 3. Stack up the base using PCB stands. So in this tutorial, i will guide you the software and hardware features of 2 PIC families: Well some animations should come first, I guess? The result is an impressive 11″x11″x11″ cube. Hence, there will be an extra 0. Somehow, it must be tested before it be taken from the mold.

A very simple jig made of foam core with slits pdoject using a razor blade. Checking connection of anodes of LEDs between layers 8.

This takes a while. Lift up the base 90 degree up with the bottom view with the part of 2 holes for cathode risers to pass through separate 1cm from each other at the position indicated as shown in Figure 42 facing you.

Not a big deal, but they are important! The circuit worked the first time I plugged it in! Next, solder all stated components on the donut board based on the schematics ckbe in Figure 70 and Figure May 26, at 3: Note of the video: Cable divisions and assignments at one end of the 34 ways rainbow cable. Videos of this project: The appearance of the LEDs layer taken out from the mold Sorry for this question.

  LES MYCOTOXINES DANS LES DENRES ALIMENTAIRES PDF

After the required wires are finished soldered to cathode risers of LED Cube, next, install a 10 ways IDC socket to another of the 10 ways rainbow cable by following few steps below: Stack up the base using PCB stands 2.

The resulted wire connections to anode legs of column 1, 2, 3, and 4 viewed from bottom of the base are shown in the Figure 49 below.

8x8x8 LED Cube With Arduino | PyroElectro – News, Projects & Tutorials

The appearance of the 10 ways IDC socket 2. It’s been on github all along, but here is the link: Mar 10, at I like how the cube looks when you’re looking down the “aisles” rather than straight on the walls.

Would love to see the finished cube when you get it done! Holes surrounded by blue box are used for installing PCB stands to stack up the base. Jun 2, at 7: Quickly setting up which of those LEDs on that layer should be on and then repeating that for the other layers, gives the illusion that we can individually control every individual LED.

Note how the LED is held crooked. The appearance of the 34 ways IDC socket.

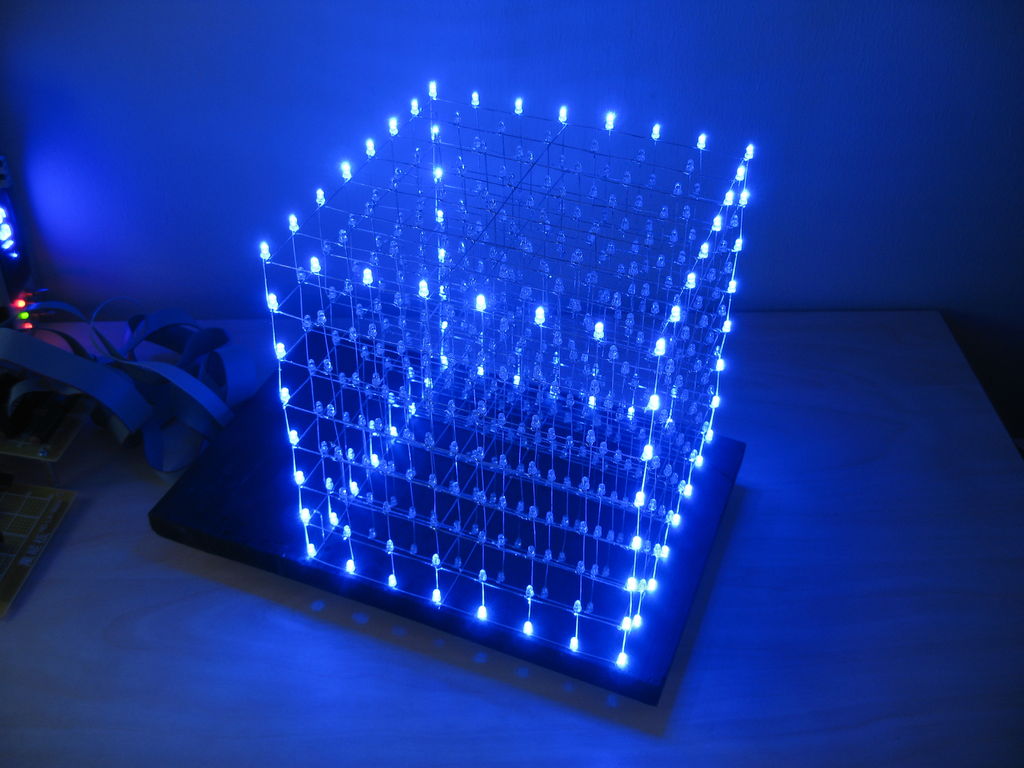

8x8x8 Blue LED Cube

Thanks anyway for the informations and stay tuned for my led cube: So first “net label” should go to Arduino D2, second “net label” goes to D3, etc. Solder it to the cathode of the 1st LEDs layer. Next, it is a need to drill holes for fitting in the microcontroller circuit still have not created in this part.

  HALO H750ICAT PDF

LED Cube installed with cathode risers Figure While the IDC socket and box header types available are 6 ways, 10 ways, 14 ways, 16 ways, 20 ways and so on. Nov 1, at 1: Drawing frame lines 4.

Project 15 — Interface with SKPS Play Station 2 PS2 controller is relatively easy to obtain from any game store and it offers good human manual input for control system.

Larger cube also meant more fragile cube. Then, bend the other end of the steel wire from the bottom of prkject base in the direction indicated in Figure 44 below. Wire connections to anode legs of column 5, 6, 7, and 8. Tested the layers and collums with some breadboard electronics. Surprisingly, the steel wire becomes straight as shown below. The resulted connections are shown in figure below.

BrianM came up with a brilliant solution! The resulted LEDs cathodes connection 7. Anyway, one at a time, connect all the D0’s together and D1’s Thus, we will treat these two motors as the left wheel motor and right wheel motor. Instead of counting holes on the PCB, I used a piece of paper as a jig. Try to place 2nd LEDs layer in the same orientation on the top of the 1st 8x88x8 layer with the help of triangle supports made from card as shown below.
