Sketchpad was an innovative system developed in by Ivan Sutherland as part of his PhD thesis. It is a tribute to Sketchpad’s uniqueness that it defined a. The Sketchpad system makes it possible for a man and a computer to converse rapidly through the medium of line drawings. Heretofore, most interaction. Sketchpad: Sketchpad, the first interactive computer-graphics program. Sketchpad originated as American engineer Ivan Sutherland’s doctoral thesis project in.

Author: Dolabar Kazisar
Country: Gambia
Language: English (Spanish)
Genre: Education
Published (Last): 27 September 2005
Pages: 292
PDF File Size: 10.99 Mb
ePub File Size: 18.95 Mb
ISBN: 437-1-35595-872-1
Downloads: 39656
Price: Free* [*Free Regsitration Required]
Uploader: Zulkitaxe

Sketchpad also led to the advanced development of other imaging software, such as computer-aided design programs used by engineers. Information sketched can include straight line segments and circle arcs. Sutherlanx company Evans and Sutherland founded together with his friend David Evans has done pioneering work in the field of real-time hardware, accelerated 3D computer graphics, and printer languages.

And it would remember that the two lines were connected. A man-machine graphical communication system “.

It pioneered the way for human—computer interaction HCI. Please note that our editors may make some formatting changes or correct spelling or grammatical errors, and may also contact you if any clarifications are needed.

Of the 36 bits available to store each display spot in the display file, 20 gave the coordinates of that spot for the display system and the remaining 16 gave the address of the n-component element responsible for adding that spot to display. Unfortunately, our editorial approach may not be able to accommodate all contributions.

Sadly, it was only operational for a short time period. One thing that made Sketchpad really stand out was its constraint management subsystem. There was a problem with your submission. Numerical control NC virtual-reality technology In virtual reality: Sketchpad also makes it easy to draw highly repetitive or highly accurate drawings and to change drawings previously drawn with it. He is a member of the National Academy of Engineering, as well as the National Academy of Sciences among many other major awards.


CAD software history Sketchpad Ivan Sutherland

Views Read Edit View history. The Human-Computer Interaction Handbook: The best solutions are always simple. This program was a great accomplishment, it was the longest program ever written for Simon, a total of eight pages of paper tape. The main idea was to have master drawings which one could instantiate into many duplicates. Please try again later. You can make it easier for us to review and, hopefully, publish your contribution by keeping a few points in mind.

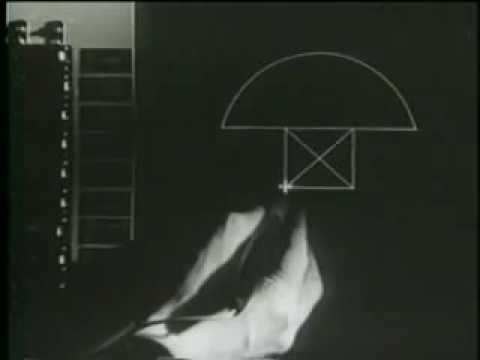

This facility was used to create alphanumeric character glyphs, and electrical schematic symbols. The topological connections of the drawing are automatically indicated by the user as he sketches.

1963: Sketchpad

Do You Need a Lobotomy? Geometric constraints is another major invention in Sketchpad was that it let the user easily constrain geometric properties in the drawing—for instance, the length of a line or the angle between two lines could be fixed. To make division possible, he added a conditional stop to Simon’s instruction set.

Since Sketchpad is able to accept topological information from a human being in sketcypad picture language perfectly natural to the human, it can be used as an input program for computation programs which require topological data, e.

You may find it helpful to search within the site to see how similar or related subjects are covered. Roberts submitted his PhD thesis, where he had added support to Sketchpad for 3D solids, including assemblies and real-time hidden line removal. Keep Exploring Britannica Computer science. Part 1 Part 2YouTube. The conditions themselves are displayed on the drawing so that they may be erased or changed with the light pen language.

About the same time, Lawrence G. Leave a Reply Cancel reply Your email address will not be published. Ivan Sutherland demonstrated with it that computer graphics could be used for both artistic and technical purposes in addition to showing a novel method of human-computer interaction.


Sketchpad even allowed the visual display of constraints on screen, using icons symbols to represent each type. Images used in the graphic design of printed material are frequently produced on computers, as are the still and moving images seen in comic strips and animations.

Sketchpad | computer program |

In Sutherland collaborated with David Evan at the University of Utah in Salt Lake City to initiate one of the first educational computer-graphics labs. It was even possible to use constraints to do structural analysis of lattice trusses, such as might be found on cantilever and arch bridges.

When Sutherland had finished with it, it had to be reconverted to run in batch mode again. For example, if you started to draw a line, and brought the cursor close to the endpoint of another line, it would snap to that endpoint. At the bottom of the article, feel free to list any sources that support your changes, so that we can fully understand their context.

The Sketchpad uses drawing as a novel communication medium for a computer. Sutherland contribution is not the revolutionary Sketchpad, however.

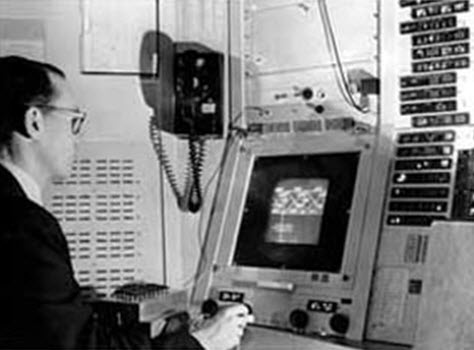

Sketchpad’s most incredible breakthroughs were in the way that it allowed the user to interact with the computer: A Sketchpad user sketches directly on a computer display with a “light pen.
