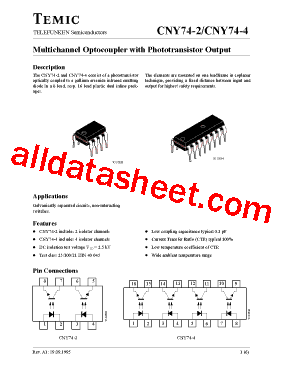

CNY/ TELEFUNKEN Semiconductors. Rev. A2, Dec 1 (9). Multichannel Optocoupler with Phototransistor Output. Description. The CNY and. CNYH includes 2 isolator channels. • CNYH includes 4 isolator channels. • Isolation test voltage VISO = VRMS. • Test class 25//21 DIN 40 Features. • CNYH includes 2 isolator channels. • CNYH includes 4 isolator channels. • Isolation test voltage VISO = VRMS.

Author: Nikogul Faugis
Country: Egypt
Language: English (Spanish)
Genre: Medical
Published (Last): 8 May 2005
Pages: 65
PDF File Size: 14.69 Mb
ePub File Size: 3.21 Mb
ISBN: 583-3-57837-348-2
Downloads: 44851
Price: Free* [*Free Regsitration Required]
Uploader: Faujind

Your name or email address: Jan 22, 7.

【CNY742/CNY744 VISHAY】Electronic Components In Stock Suppliers in 2018【Price】【Datasheet PDF】USA

And that is also important. You will have values well inside the spec of the opto. Posted by rjjenkins in forum: The second part of circuits work on 5VDC, because there are some TTL components like shift registers, microcontroller etc. Jan 22, 4. Jan 22, 5.

Use anything from 1Kohm to to 10K. I will use a trimmer instead a resistor.

  FFXIII-2 PIGGYBACK PDF

Optocoupler fails after month. By using a 4.

There is a simple formula to calculate the two resistor for each optocoupler? Assume using figure 2 chy74-2 the datasheet. I do not know were you got the nA from. Jan 20, 1. But the transistor in the opto will be more or less full on with a LED current of 15mA.

CNY74-4 Optocoupler

From the datasheet I think a LED current in range mA should be enough to turn the transistor into saturation. I guess a 4. We see that the Saturation voltage, collector emitter dataaheet be at typical.

This will show the voltage drop versus current. Jan 22, 9. Tales from 80s Tech: And you will no problem at all.

TEMIC – datasheet pdf

No need to have the transistor conducting max current. Quote of the day.

Jan 22, 8. If the opto is connected to some 5 volt logic gate or controller. Hence the emitter resistor will control the current. No, create an account now.

Jan 22, 6. You May Also Like: I used this datasheet http: As regards the resistance of the transistor, which logic do i use?

  KINOSTERNON INTEGRUM PDF

Jan 22, 3. Discussion in ‘ General Electronics Chat ‘ started by gerald81Jan 20, The voltage drop in the transistor will be typical. May 11, 5, 1, Posted by shetsachin in forum: Jan 22, Datashewt 23, Jan 20, 2.

OptoCoupler Posted by mpuvdd in forum: The LED will also have a voltage drop. In summary, hereafter you can see the formulas for resistors wattage: The higher Vce voltage drop. But use a emitter resistor in the range of 4. Go for a LED current equal to 15mA. Find the voltage drop at 15 mA and take this into your calculations please. You have got how to fny74-2 the LED series resistor correct.
