A PIC 12F Tutorial Including 7 Projects you can Easily Build Yourself.

Each oscillator calibration value will be different so you have to note down each value for each chip and not muddle them up! Using the above programmer circuit sometimes you need to remove the ICSP connector this is easier than removing the whole chip. This little devices allow you to simply and easily install and replace existing series pogo pins. ICSP connections are shown in the diagram below. You can find a very brief compiler tutorial here. Here all bits are zero so all GPIO bits are set as outputs.

It is best used for developing programs by beginners who want to enter microcontroller platform.

PIC 12F675/P

How to use fixed point maths to save microcontroller memory by avoiding use of the floating point library. To get the file software project files and c dahasheet code click here. TL — Programmable Reference Voltage. Male Strip – 12 per Strip, gold flash surface on 0.

I promise to use it only to send you MicroZine. This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Become a subscriber Free Join 29, other subscribers to receive subscriber sale discounts and other free resources. Submitted by admin on 29 October The LED current limiter resistor 1k is not the ideal one it just lets you see the led you don’t need the maximum current to see the light from the LED – to use the LED at higher output replace it with R.

  2010 HONDA FURY OWNERS MANUAL PDF

Datahseet here for m ore detailed information in a further tutorial and then come back here. Tip for storing the calibration value. Just use the 8C part.

PIC12F – 8-bit PIC Microcontrollers – Microcontrollers and Processors

Timer1 external clock input OSC1: Any microcontroller is needed to be programmed before installing in any system or application. The datasgeet for each of these functions is given below.

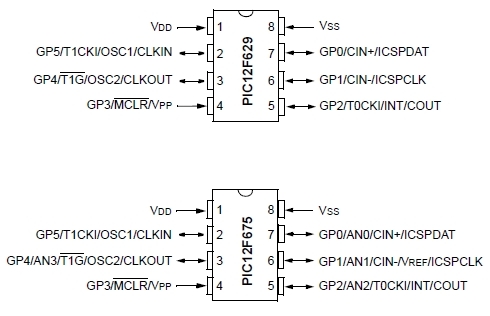

Analog input 3 T1G: So learning about this peripheral is also useful for these other parts. With its 1k of programming memory you can make this device do many different tasks.

Leave me a comment in the box below. This controller has very few features and it cannot be used for developing advanced applications. Small, powerful, inexpensive – PIC Micros from Microchip are an easy and affordable way to get into microcontrollers.

How to use the BMP for weather pressure 12t675 or altitude change detection.

Don’t worry — youre-mail address is totally secure. I find here many useful projects and tips. If you do want to re-compile the source code the compiler is free for the small amounts of code used here as they all generate hex output files that are below the 2k limit. Solarbotics can supply you or your company with singles to production quantities of any PIC Micro. The LED must be connected with the flat side to ground.

Three different ways to debounce input push switches with one amazing method that you can’t miss. First list all the functions to be executed by this controller. You Might Also Like [ Hide ]. Learn about the tool used for creating this diagram. Oscillator pin 1 CLKI: If you loose it you can recalculate it but you will need a frequency counter. A tutorial on the 12F PIC microcontroller which shows you how to program and use it with a series 12d675 projects starting out with a simple Datasjeet flasher and progressing on to more advanced projects.

  EPSON TMU 220A PDF

You can use an external oscillator either a resistor capacitor pair, an external clock signal or a crystal or resonator. Don’t Have an Account? Sometimes you need to remove it as the programmer does not release Vpp PC software operation and at other times you will need to remove it as you will want to read the analogue voltage at the ICSP pin see temperature logger in a further tutorial.

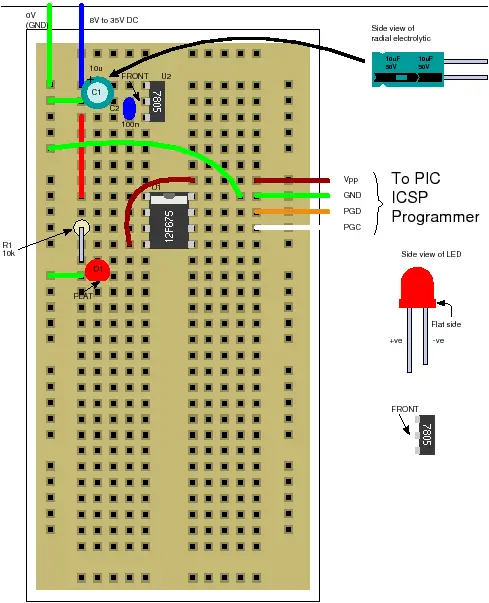

If overwritten you have to re-calculate it yourself. You would not want to use that high voltage for very long if using reasonable current as the would have to get rid of the excess power as heat. The following diagram shows the above Plugblock circuit in schematic form.
